Embroidery Hoops

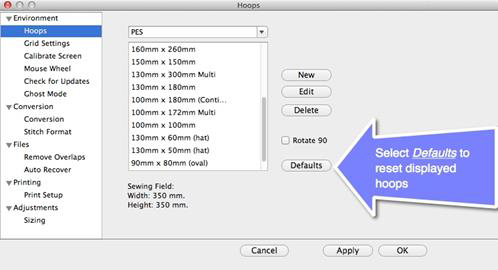

In the Preference window, under Environment, you can choose a hoop. Hoops are displayed in a sorted list, organized by embroidery file format. Most embroidery hoops are made using the metric system, so the sizes for the hoops are displayed according to the way the manufacturer sells the hoop.

There are two types of hoops offered by Embrilliance. Those are Normal hoops and Multi-Position hoops. Multi-Position hoops are those that offer more sewing area than the machine can sew at one time. So the hoop (or fabric) gets repositioned to allow a larger design to be sewn.

There are many hoops that are built into the program, and you can add your own. As the program updates over time, or if you have edited a hoop, you can use the ‘Defaults’ button to restore the program to the hoops provided. The ‘Default’ button will not, however, remove any hoops you’ve added yourself.

Many times you will want to sew a design sideways in the hoop. But rather than laying out your design sideways, it might be convenient to have the hoop displayed as rotated. Checking the ‘Rotate 90’ button accomplishes this.

If you have added a hoop, or if you decide to have the program display only the hoops that you own, you can delete hoops from the list, using the ‘Delete’ button.

You can create hoops and edit hoops too.

The width and height fields are self-explanatory, and you can name your hoop as desired. Hoop names should be unique. Note that in the Everyday version of Embrilliance you cannot create or edit Multi-Position hoops, but you can do this in Advanced.

Note: Do not create a hoop that is bigger than the sewing field of your embroidery machine.
