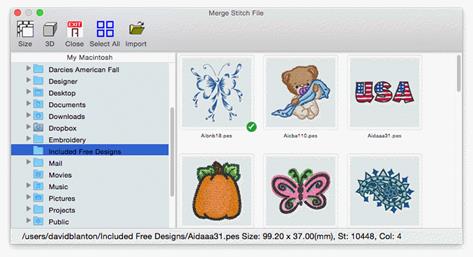

The Merge Files Window is used to merge existing embroidery files into the current Design Page.
The Browse view on the left side is called a ‘Tree’ control, and it has a ‘Root’ level, which is left-most and ‘branches’ that open and close using the ‘+’ and ‘-’. You will also see individual .ZIP files as branches, so you can import designs directly from within those as well.
On the toolbar, there are controls for thumbnail size and 3D display. The ‘Close’ button will close the window without importing anything. The ‘Sel. All’ button selects all the designs in the view on the right.
To bring designs in, click ‘Import’.
As with most views like it on Mac, the thumbnail view on the right allows single design selection by clicking on an item. Select a range of designs by first selecting a design then holding the shift key down while clicking another design. Additionally, use the control key to click on non-adjacent designs. This is called a disjointed selection.
Alternatively, double-click on a design to import it and close the window.
