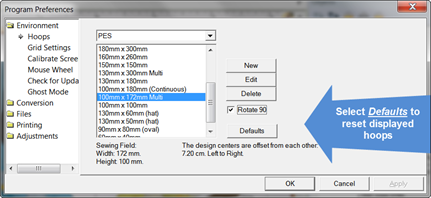

Splitting for Multi-position Hoops

Manufacturer multi-position hoops are listed with “Multi” after the hoop name.  These hoops allow you to hoop fabric and stitch out a design that is larger than your default sewing area.  The hoop is comprised of 2 or more overlapping sections.  You attach the hoop to the machine in one position and stitch a design, and when complete, you move the hoop to the next position, load the next design, and stitch it creating an overall larger design without rehooping the fabric.  For more information on availability for your machine and how they function at the machine, please visit your local dealer.

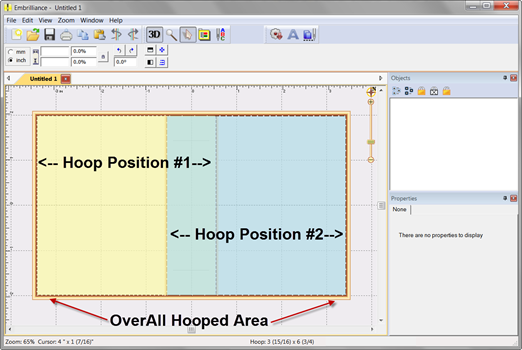

We have added support for these hoops.  When you select the hoop it will be displayed on your screen – the overall hooped area as well as the hoop section indicators.

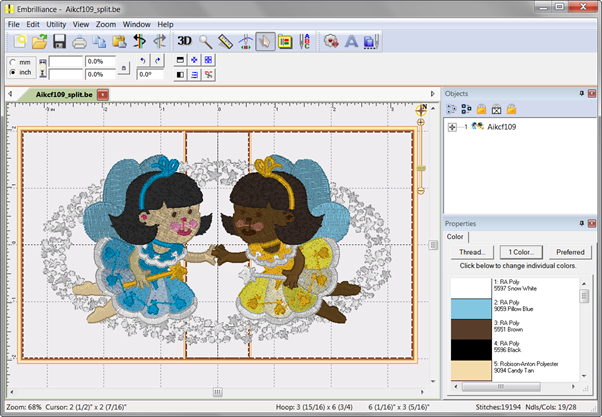

Treating this as a standard hoop, you may add lettering, merge designs etc.

When complete with your customization, go to File > Save As and choose a name for your design.

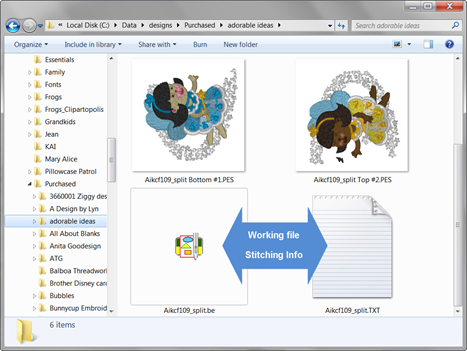

Multiple files are created for your design.  The working file, the stitch files that will be sent to the machine and a text file containing the stitching instructions which include the order of stitching and location for each file in the hoop as well as the color order based upon the original design. (shown in Windows Explorer with Thumbnailer installed)
