Welcome to StitchArtist!

Stitch Artist Embroidery Digitizing Software Logo - Needle and Paint BrushStitchArtist is a program to create machine embroidery designs from scratch. You start using existing artwork or by ‘drawing with stitches.’ You control the shapes, set the stitch type and properties, and StitchArtist generates stitches for you. When you want to create stitches, that’s what it does.

StitchArtist embroidery digitizing software was a journey many years in the making, designed for ease-of-use and to promote embroidery digitizing education. The process of embroidery design creation, commonly called ‘embroidery digitizing’, requires a skilled person using a specialized tool. StitchArtist is that tool, created with the intention to take the difficulty out of using the software, leaving the user to concentrate on their designs and creativity.

In a radical departure from the typical embroidery digitizing interface, StitchArtist uses a single mode to draw, set stitches, size, edit, rotate, sequence and set properties of design objects. It is easy and intuitive once you know the very basics, which are described in detail in the user guide.

StitchArtist Layout showing how to create embroidery designs for quilting and a quilted bag project.

StitchArtist comes in levels to suit users of all skill levels:

StitchArtist Level 1

We designed Level 1 for hobby embroiderers who need simple digitizing software to create stitches without going into debt or spending too much computer time. Level 1 offers a limited set of stitch types and, more importantly, properties for those stitches, so that the user can simply ‘create’ without needing to learn many steps. Level 1 includes an automated shape drawing tool to help users create simple shapes easily, from squares and rounded rectangles, circles and ovals, polygons, stars, and spirals, all which can be converted to multiple stitch types. Typical projects for Level 1 are applique designs, running stitch designs and simple filled shapes, backgrounds or unifying elements for design compositions etc.

StitchArtist Level 2

Level 2 includes Level 1 and is designed for production and skills training for those who would like to create more sophisticated embroidery designs (logos), as well as a more complete set of digitizing tools. It will allow the user to learn a wide cross-section of embroidery stitch types and properties, and have enough freedom to create virtually any design. If you are looking to use satin stitches to their fullest extent, you’ll want Level 2. This level allows you to import .SVG vector art and some cutting file formats (.FCM and .studio) for use as objects. Included is our World’s-First automatic 3D Foam column underlay; this automates the process of converting any suitable satin-stitch elements into 3D Foam embroidery with a single, simple setting.

StitchArtist Level 3

Level 3 includes Level 1 and Level 2. We crafted it for those who either love to create designs or are digitizers working commercially in the machine embroidery field. This level includes advanced items such as Styles, QuickStyles, an Eyelet tool, Carving lines, graphical operators such as Cut, AND, Union, Flatten, Inflate/Deflate, Re-construct and Break. It also allows for the content within the product to be expanded by publishing Motifs and Embossed effects. Additional controls are available to work in your preferred method. The properties for each stitch type are fully revealed and operations for vector support, including export, are added. With level 3, you can draw .svg and cutting machine designs directly. It offers branching of all object types including sub-branches that don’t need to touch. There’s even a tool to automatically outline existing design stitches, making for easy borders on existing stitch-file elements. The inclusion of advanced lettering tools makes it easy to create custom enveloping, baselines of any shape, and templates to automate name-drops. For digitizers who need to create custom fonts for their embroidery clients or those that want to publish fonts for their fellow StitchArtist users, level 3 includes object-based, scalable font publishing using our world-renowned BX installer format, complete with rights management built in, all at no additional cost.

Tell me more about StitchArtist…

StitchArtist is not a photo-to-stitch tool, nor is it an autodigitizing program. The success of those types of tools is subjective and many have attempted to include automatic digitizing with varied results. When we find a process that meets our standards, we’ll produce it. In the meantime, we put our effort into straightforward design creation software. Whether you want to make designs for hobby, cottage industry or professional use, StitchArtist is for you.  We designed this product for simplicity and instruction from the ground up to serve those who really want to learn how to digitize.

It is not a customizing tool (used to manipulate existing designs.) It does not contain Essentials or Enthusiast, although it does run within the Embrilliance Platform, integrating all your customizing and creation tools seamlessly in one window if you run multiple Embrilliance programs.  Even so, you can use StitchArtist by itself as desired; it does not rely on any other purchased product, nor is it an upgrade of any other product.

How do you use StitchArtist?

Most users will begin by importing a background image containing artwork they want to embroider. The user will then create ‘objects’; shapes that will be stitched, over the artwork, using it as a guide. The user  decides the shapes, sets their order, and assigns their stitch properties. Those familiar with any modern drawing tool will feel comfortable with StitchArtist as it uses a Bezier model of shaping.

When assigning stitches to shapes, you have freedom to change your mind at any time. You can assign any shape  a new stitch type as easily as clicking a button.

Digitizing Tool Pane for Embrilliance StitchArtist Level 2

Easier Editing and Creation

Creating designs requires a great deal of editing shapes.  StitchArtist has features that make object creation and editing easy:

  1. Stitch generation is instant and automatic.
  2. No mode changes for selection, editing, coloring, moving, sizing, rotating or adjusting properties.
  3. You can work in any number of display modes. You aren’t locked to a specific mode during any process.
  4. Simple geometric shapes are easily created and altered with the automated shape tool.
  5. Perfect curves are 3 clicks away with the 3 point arc tool.
  6. Users unfamiliar with Bezier curves can use a simulated spline system which is easier to learn and teach; helpful especially in early instruction.

StitchArtist Shapes Tool

Available Stitch Types:

StitchArtist Embroidery Digitizing Software Stitch Type Chart

Methods / Properties:

StitchArtist Embroidery Digitizing Software Methods and Properties Chart

To give you a sample of the comprehensive nature of the properties you can use with stitch objects, here are some examples, all Level 1 unless noted:

Run Stitch Styles:

  • Single
  • Double
  • Bean (up to 9 passes)
  • Chain
  • Backstitch (up to 5 passes)
  • Stemstitch (adjustable width, angle)
  • Sashiko

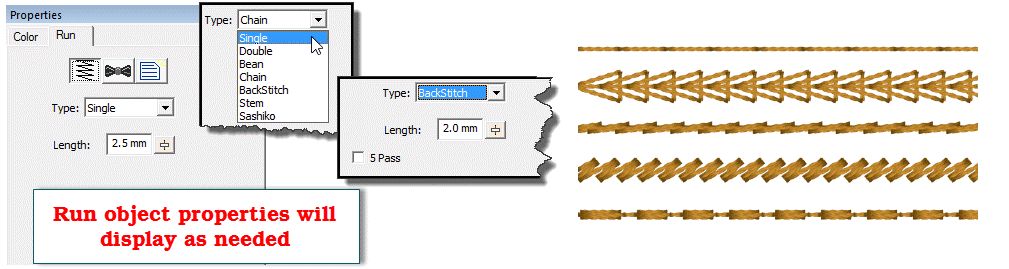

StitchArtist Embroidery Digitizing Software Run Stitch Type and Settings Menu with Examples of Chain, Run, Backstitch, and Sashiko stitch types.

Satin stitch properties:

  • Density
  • Patterns (18)

Length, Edge Pad, Reverse pattern

  • Fringe

Will hold on without topstitching

  • Contour

Two styles: constant density, fixed line count

  • Split Stitches

Number of splits (1-5), Max stitch length, Reverse stitch control

  • Feathering / Jagged Edges

Inside and Outside, Left and Right independent control

  • Pull Compensation

Minimum, Percent, Maximum

  • Gradient

Four styles with density adjust

  • Underlay

Edge Run, Parallel, Zig-zag. With control of length, inset and density.

3D Foam automatically adds cutting stitches to ends with caps and joins and includes push compensation for proper cap extension.

  • Freestanding (Level 2+) for Richlieu bars, etc.



Satin Border

  • Pattern
  • Split
  • Feather
  • Applique
  • Line styles

Satin or Steil stitch properties in StitchArtist embroidery digitizing software

Advanced Text Tools

  • Envelope creation and editing

  • Fixed baselines at any angle or with any shape

  • Name drops at any angle and alignment for template creation

Applique and our included exclusive: Appliqadabra

  • E-Stitch, Blanket stitch, Satin
  • Full control over use of Position and Material
  • Simulated Fabric fill
  • Appliqadabra  – lets you use a photo fill, with cropped printing for mixed media
  • Color styles including PES traditional, User-defined and Keep Color for multi-needle machines.
  • Cut-file saving for Silhouette, Scan ‘n Cut, SVG

Applique properties showing a satin stitch and estitch border as well as applique fabric preview in StitchArtist

Stipple

  • Four styles with adjustable spacing and stitch length
  • Can be converted to a Run, and then a Motif Run for virtually unlimited possibilities.

Motif Run / Fill

  • Combine motifs in a sequence for your own pattern
  • Full control over each motif size, rotation, mirror
  • Satin motifs included
  • Candlewick motifs included
  • Scale on line (level 2) for a dramatic decorative effect

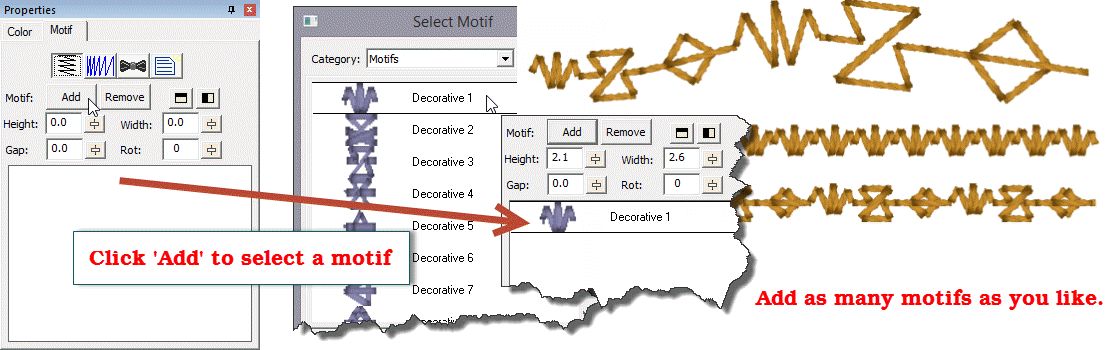

Motif Stitch properties in StitchArtist Embroidery Digitizing Software

Freestanding background

  • Can be used to make lace designs
  • Can be used under other objects for freestanding support
  • Single-run style for creating even grids for a quilted look on linings, etc.

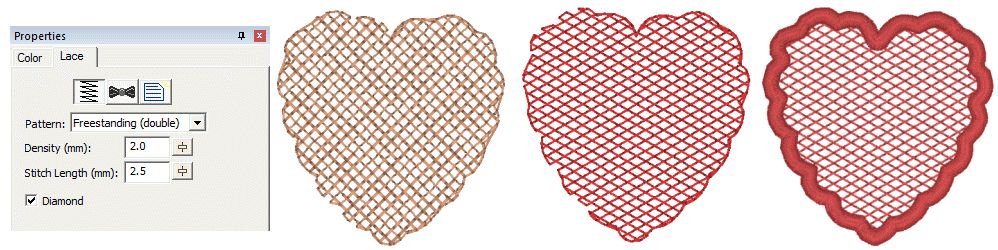

FreeStanding lace objects and properties in StitchArtist Embroidery Digitizing Software showing a lace heart embroidery design

Cross Stitch

  • Open and closed paths supported
  • Fixed grid so adjacent objects can align

CrossStitch or Xstitch fill properties as showin in StitchArtist Embroidery Digitizing Software

Contour (level 2, 3)

  • Three styles: Echo outline inward, Echo interior clipped, Echo outline outward
  • Offset and gradient control

Branching (level 3)

  • Connect any object types
  • Can create subpaths: Objects do not have to touch.

Scalable, Object-Based Font Creation (level 3)

  • Creates and publishes complete, keyboard-ready native fonts for use with all Embrilliance Platform products
  • Publishes either privately (only to the host system) or to a BX installation file for distribution and installation by any Embrilliance Platform user.
  • Allows digitizers to embed copyright information, website information, and usage guidelines.
  • Allows digitizers to control publishing and editing rights for shapes in their published fonts.

Custom Font Publishing showing a typeface and the publishing tools

Also Included:

  • Over 200 outlines added to the library which can be used in your design.
  • Over 150 Motifs for run and fill
  • Over 50 Emboss patterns
  • Over 15 Fill Patterns

Read the manual

There is a PDF and online help of the manual for the Embrilliance Platform, which includes a lengthy StitchArtist volume. You can find the links at:

http://embrilliance.com/downloads

I want it!

Are you ready to become a StitchArtist? Visit our store!

 Sample Images

Level 1 shown

StitchArtist Embroidery Digitizing Software diagram showing applique objects true type font handling and column fills on text.
StitchArtist Embroidery Digitizing Software diagram showing motif fill stitch settings, patterned fill stitch use, and background images.
StitchArtist Embroidery Digitizing Software S diagram featuring the applique style and a '5 more sleeps' design shwoing the way StitchArtist handles jump stitches.

Level 2 shown:

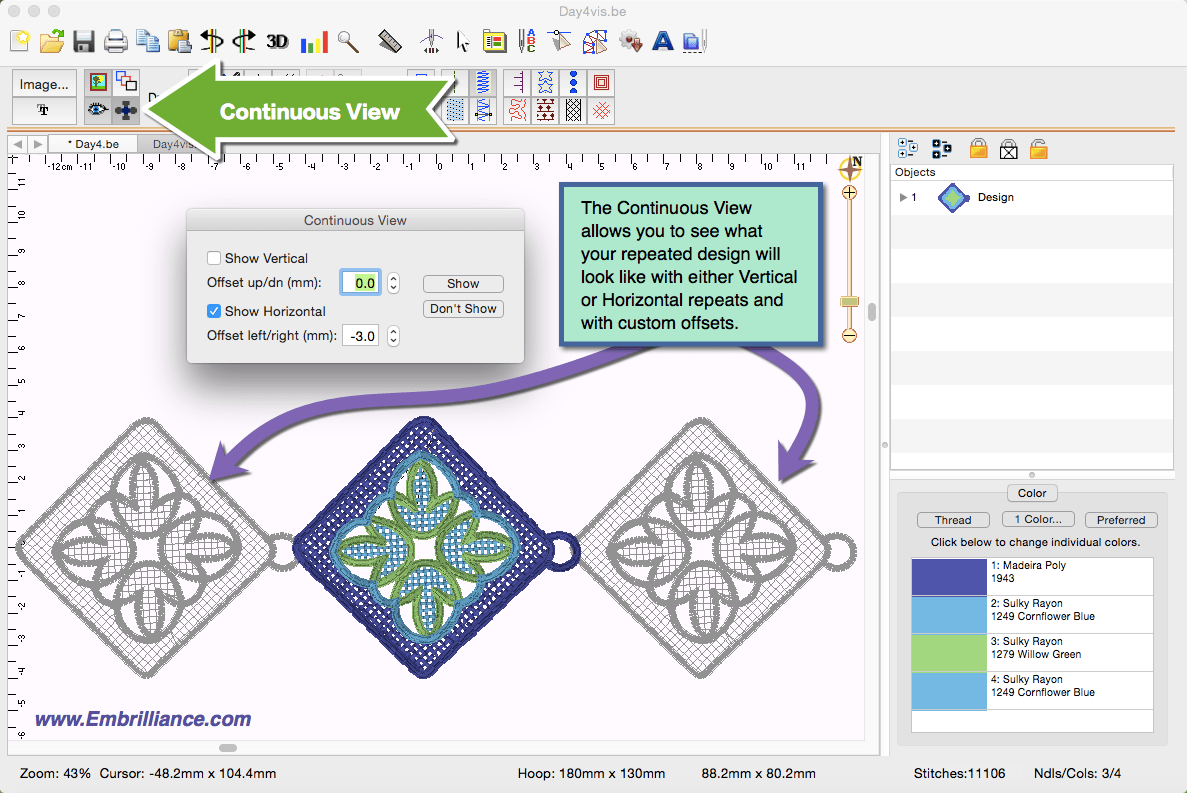

StitchArtist Embroidery Digitizing Software Continuous View example for repeated embroidery designs
StitchArtist Embroidery Digitizing Software shoing gradient fills, freestanding lace tools, and graduated french knots
StitchArtist Embroidery Digitizing Software Showing the Magic Wand tool for creating outlines from graphics.
StitchArtist Embroidery Digitizing Software showing an applique design with stippling and shape libraries.
